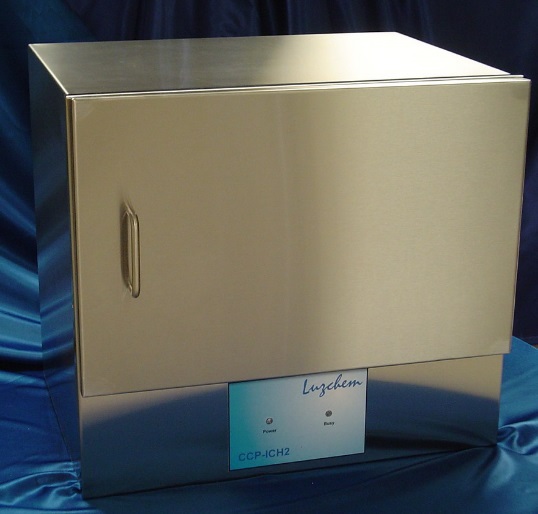

符合 ICH 规范光反应器 & 配置 CCP-ICH2
Dimensions: External: 18” wide, 21” deep (with exhaust) and 16.5” high(46 x 53 x 42 cm)
Internal: 12” wide, 12” deep and 8.5” high (30 x 30 x 22cm)Internal (lamps installed): 11.25” x 12” x 7.6” high (28 x 30 x 19 cm)
Weight: 36 lbs. / 16 kg
Power Rating: Standard in 110 VAC, 50/60 Hz cycle, 4 Amps Available in 220 VAC if requested at time of order Ships with North American-style power cable
Housing Material:External: Stainless Steel
Internal (chamber): Al 5052-H32 (aluminum alloy)
Ambient Temperature:Must be between 10 ºC and 40 ºC
Chamber Temperature:Temperature control standard in the range of 3-4 ºC above room temperature to 50 ºC
Humidity: Must be between 0% and 95% (non-condensing)
